The FOT Trial Trap: Why Tooling Approvals Fail on the Domestic Melt Deck
Volume 01: Casting Yields & Tooling Risk

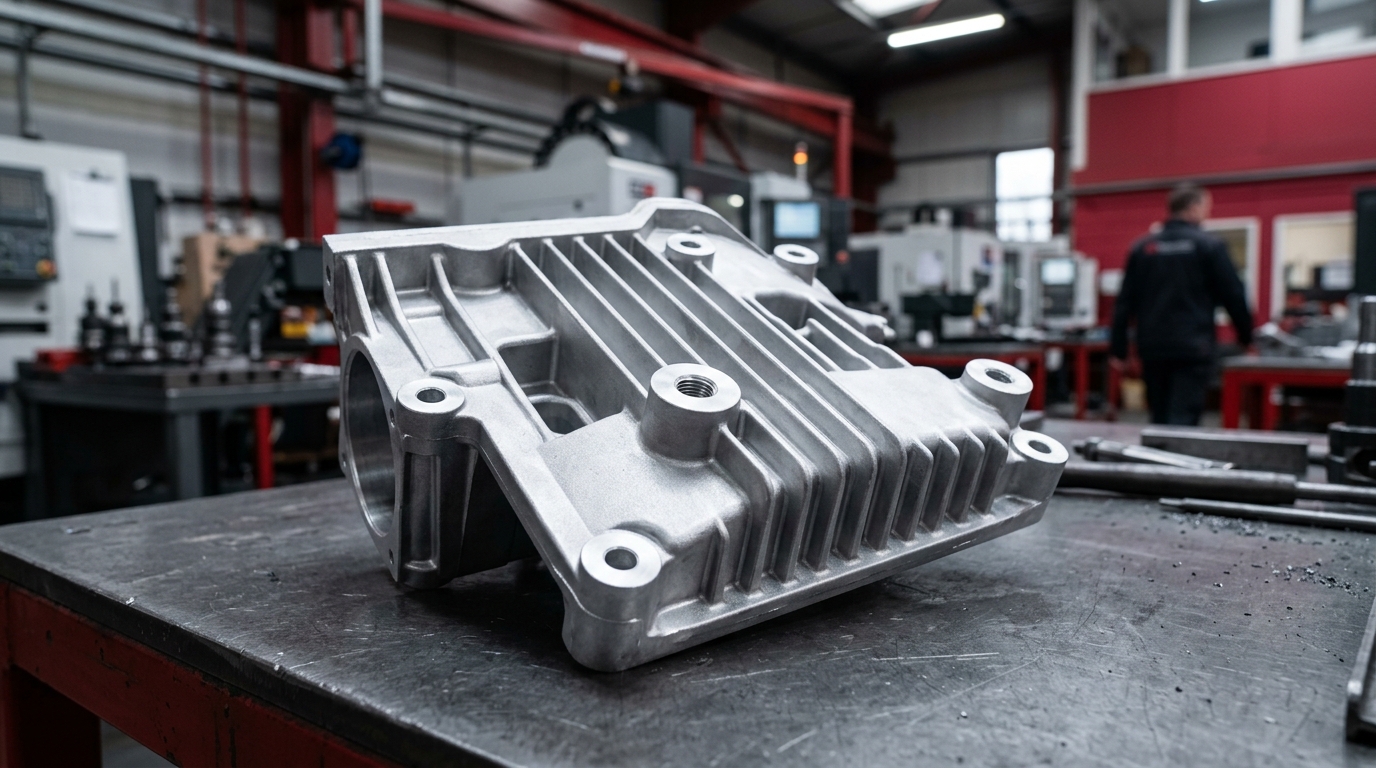

A multi-cavity tool runs 50 flawless shots at the Asian build shop, earning instant FOT sign-off. Then it lands in a domestic production plant and runs at 25% scrap. The problem isn't the tool build — it's the chemistry, hydraulic drift, and thermal profile mismatch between trial and production environments.
Ask any sourcing director about their tooling approval process and they will reference the First Out-of-Tool (FOT) milestone. The build shop in Shenzhen or Taichung runs a sample batch under highly controlled conditions, produces fifty parts with perfect dimensions, and receives immediate sign-off. The tool is packed, shipped across the ocean, and bolted to a 2500-ton press in Monterrey or Cleveland.
Within two weeks, the program falls behind. The parts fail leak tests due to internal gas porosity. The die corners show severe soldering. Sourcing teams blame the toolmaker; the toolmaker blames the press operator. In reality, the tool failed the moment it left the trial shop, because the trial was a simulation of a manufacturing environment that does not exist in production.
The Anatomy of the Mismatch
When a casting tool is run during a supplier sign-off trial, the trial facility minimizes all environmental variables to achieve a "pass." In the production plant, these variables compound to drive scrap rates up to unsustainable levels.
Production Scrap Rate Progression Upon Tool Arrival
Green bars reflect initial trial runs; red bars show scrap accumulation once secondary remelt alloys and thermal cycling fatigue start.
As the chart demonstrates, scrap rates remain low during the initial clean runs (Weeks 1-4). However, as tooling undergoes continuous thermal cycling and production alloy inputs drift, yield rates collapse. There are three primary physical deviations that explain this behavior:
Three Physical Mismatches That Sink Yields
Melt Deck Chemistry and Ingot Segregation
Trial shops run primary, virgin ingot alloys (such as primary A380 or AlSi10) with exact copper, silicon, and iron balance. Production floors run secondary remelt scrap to hit cost-per-lb targets. This secondary melt contains elevated iron levels (to prevent die soldering) and copper segregation, which increases the liquidus temperature and changes the viscosity of the flowing metal. The gating system that filled the tool beautifully during the trial is now under-sized for the higher viscosity flow, leading to cold shuts and fill defects.
Injection shot-profile and Hydraulic Drift
The trial machine has pristine hydraulic seals, calibrated accumulator bottles, and precise slow-to-fast phase transition controls. The production machine is a ten-year-old press with accumulator drift and piston wear. In the trial, the transition to the fast shot (filling the cavity in under 80 milliseconds) happens exactly at the gate entrance. In production, hydraulic lag triggers the fast shot early, trapping air in the shot sleeve and injecting it directly into the casting as gas porosity.
Spray Cycles and Thermal Shock
Build shops use manual, operators-applied spray guns to release parts during the FOT run, allowing the die temperature to stabilize naturally. Production lines use automatic multi-nozzle spray manifolds programmed to blast the die face with water-based lubricants. This rapid, automated over-cooling drops the surface temperature of the tool steels by 300°C in seconds, creating high tensile stresses that trigger premature heat checking (cracking) within the first 10,000 shots.
How Sourcing Teams Escape the FOT Trap
To prevent these failures, operations leaders must reform their tooling validation procedures from "snapshot pass" metrics to "production resilience" audits. We recommend implementing three procedures immediately:
1. Enforce Premium Tooling Steels with Certified Heat Treatment. Standard H13 tool steel is highly susceptible to heat checking. For structural parts, mandate premium grades like Dievar or QRO 90, and require third-party NADCA Class #1 heat treatment certification. A cheap insert will cost double in downtime and scrap before the first 50,000 shots.
2. Mandate Production Alloys for Tool Sign-off. Never allow a toolmaker to run a sign-off trial using virgin alloy unless that is the exact alloy running in the production plant. The trial run must be executed using secondary remelt ingot sourced from the production plant's approved supplier. If the gating system cannot fill under production viscosity, the tool does not leave the build shop.
3. Audit the Plunger Speed-Pressure Curve. Record the plunger velocity and hydraulic pressure profile during the trial run and overlay it on the production press profile. If the production press cannot reproduce the fast-shot acceleration slope or intensification pressure timing within a 5% tolerance, the program is at risk. Do not modify the tool; repair or recalibrate the production press accumulator system.
500
Consecutive shots required in a certified tool run to qualify for sign-off — replacing the standard 50-shot sample batch.
System truth in die casting requires looking past the clean, hand-polished sample parts and looking directly at the thermal, metallurgical, and hydraulic variables of the production floor. The toolmaker's job is not to build a tool that passes a trial; it is to build a tool that survives the reality of the domestic melt deck.
